Universal Fencing System

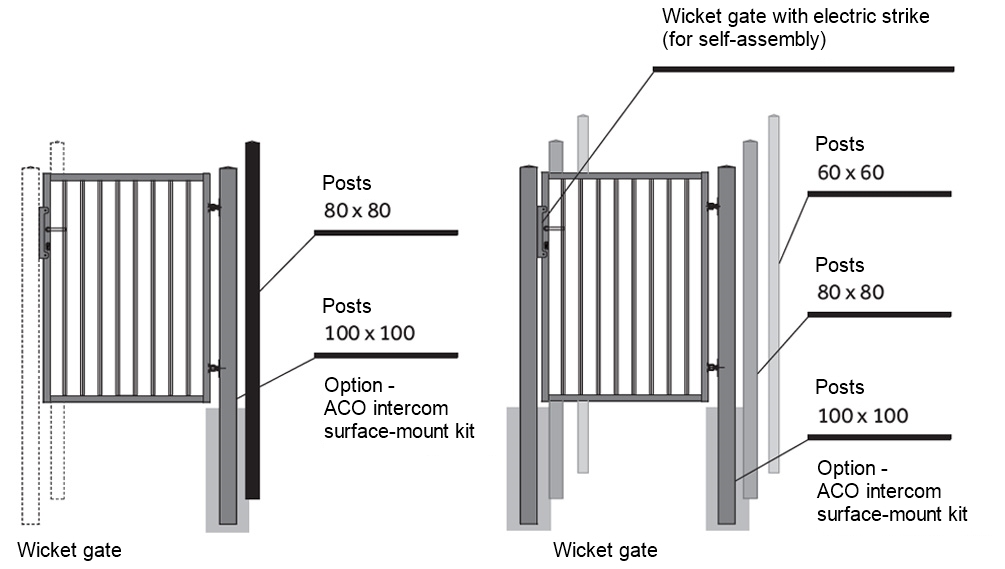

GATE
GATE DIMENSIONS
H × L (mm)
1350 × 990
1500 × 990
1650 × 990
SET
POSTS 60 × 60, 80 × 80, 100 × 100
FRAME – 40 × 40 VERTICAL PROFILES / 35 × 35 HORIZONTAL PROFILES
M16 90⁰ HINGES – SCREW-FIXED
FILLING – 15 × 15 DIAGONAL PROFILES
GNS LOCK
UNIVERSAL BUFFER

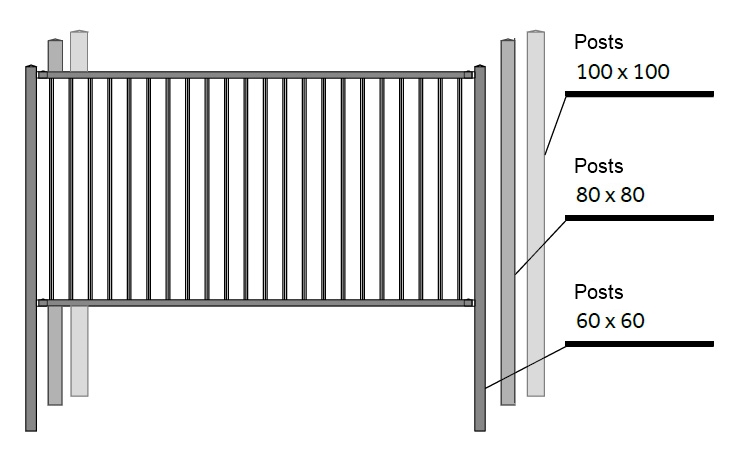

UNIVERSAL SPAN
SPAN DIMENSIONS
H × L (mm)
1200 × 2000 1200 × 2500
1350 × 2000 1350 × 2500
1500 × 2000 1500 × 2500
SET
FRAME – 35 × 35 HORIZONTAL
FILLING – 15 × 15 DIAGONAL PROFILES (CHECKERED)
MOUNTING ELEMENT

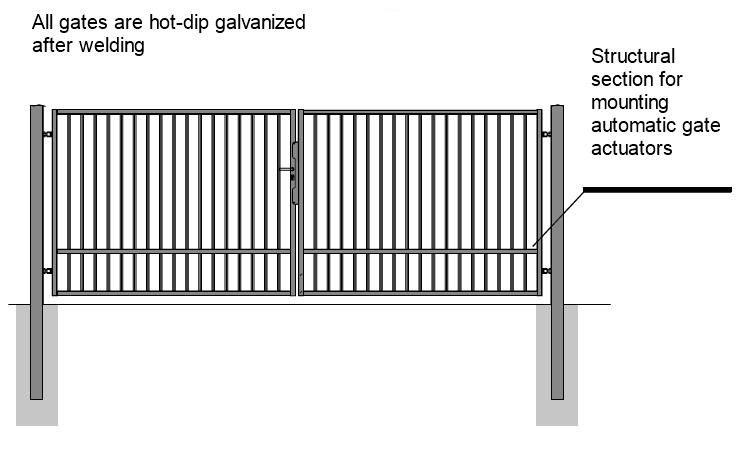

DOUBLE-LEAF GATE
GATE DIMENSIONS
H × L (mm)
1350 × 4000 1350 × 4500
1500 × 4000 1500 × 4500
1650 × 4000 1650 × 4500
SET
FRAME – 40 × 40 VERTICAL PROFILES / 35 × 35 HORIZONTAL PROFILES
FILLING – 15 × 15 DIAGONAL PROFILES (CHECKERED)
LOCK WITH CYLINDER
BUFFER / UNIVERSAL BUFFER (LEFT / RIGHT)
M20 90° HINGES – SCREW-FIXED
GATE UPRIGHTS – 100 × 100
OPENING LOCK – LOCINOX BOLT

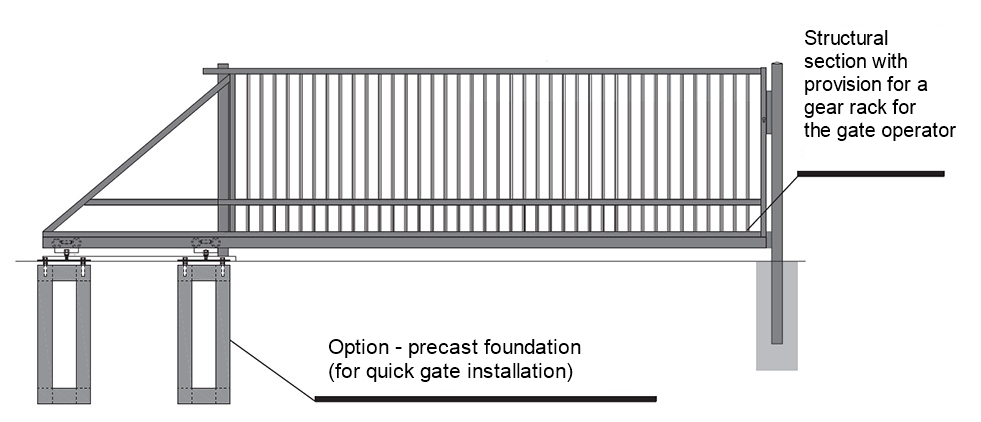

SLIDING GATE
GATE DIMENSIONS
H × L (mm)
1350 × 4000 1350 × 4500
1500 × 4000 1500 × 4500
1650 × 4000 1650 × 4500
SET
UNIVERSAL GUIDE POST 80 × 80 – LEFT, RIGHT
RAMP POST 80 × 80
FRAME PROFILES 40 × 40
FILLING – 15 × 15 DIAGONAL PROFILES
HOOK LOCK WITH CYLINDER
BUFFER
RAMP
RAL COLOURS
Standard range of
paint finishes for fences

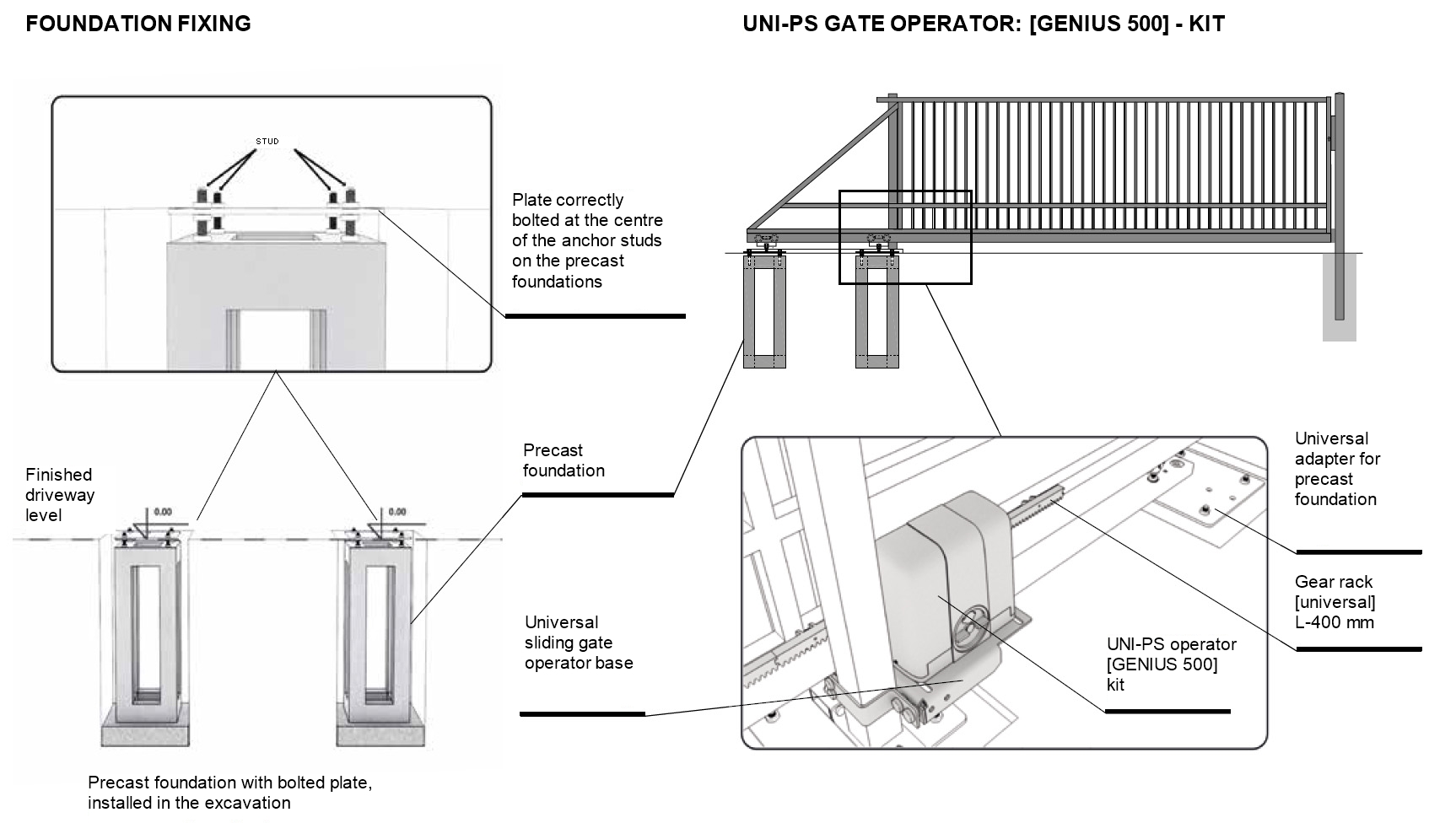

COMPONENTS OF THE UNIVERSAL SYSTEM
UNIVERSAL SYSTEM CONFIGURATIONS
